24' Wide Custom Gate
Fabrication Drawing

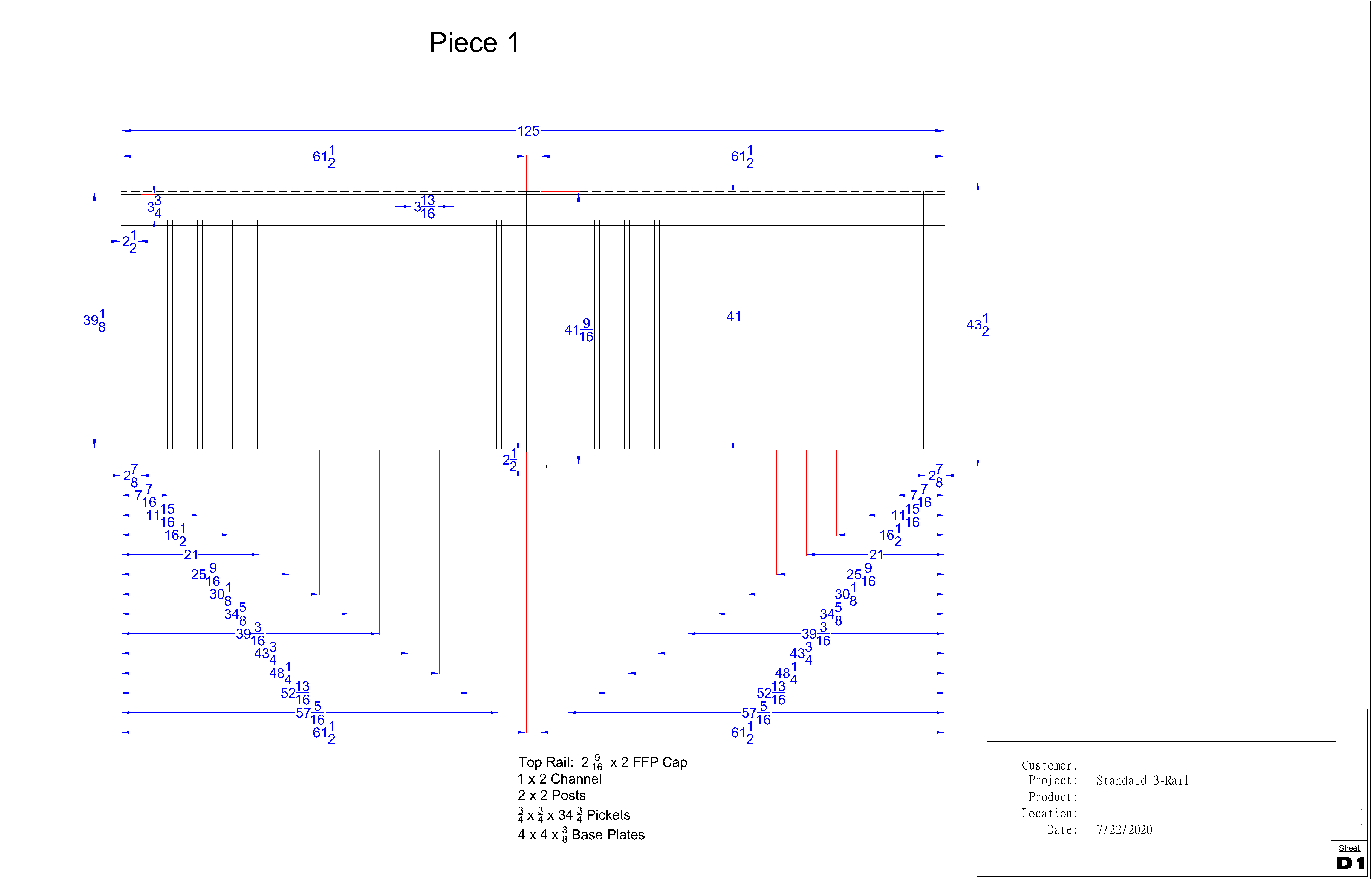

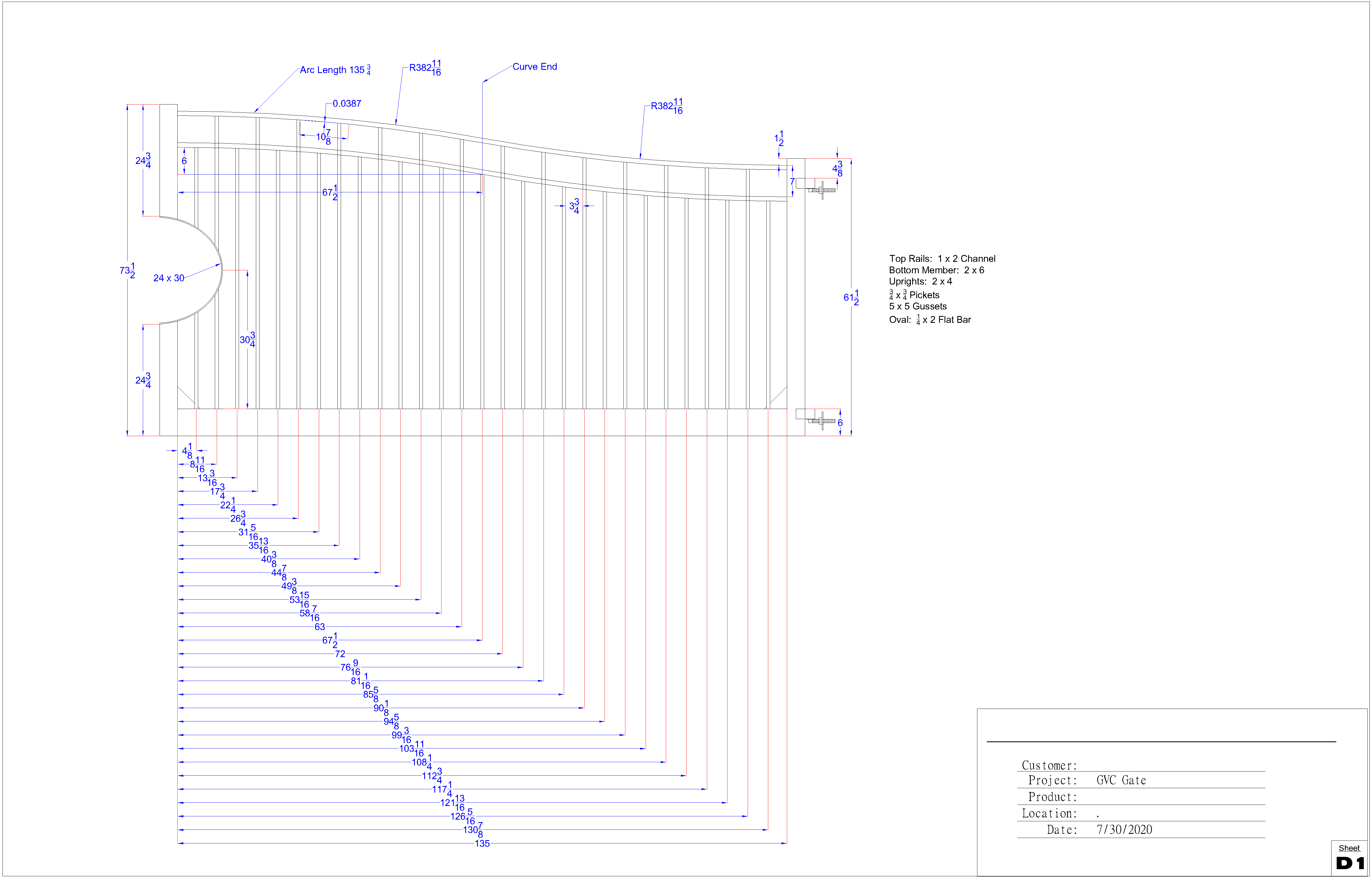

Fabrication drawings like this were a typical part of the job. It helped reduce costly production errors.

24' Wide Custom Gate
Submittal Drawing

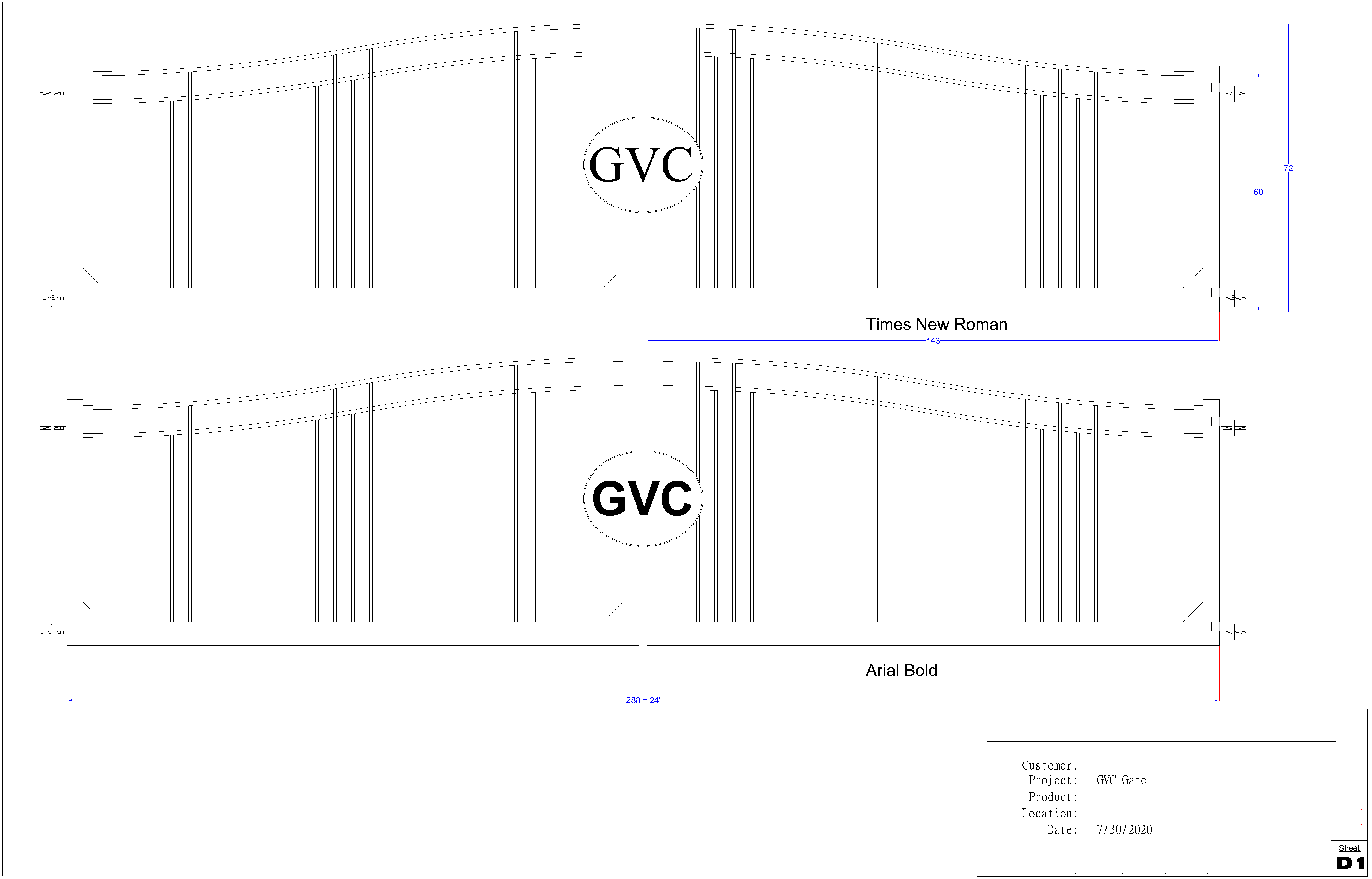

For the client to choose which monogram they preferred.

Rolling Gate
Submittal Drawing

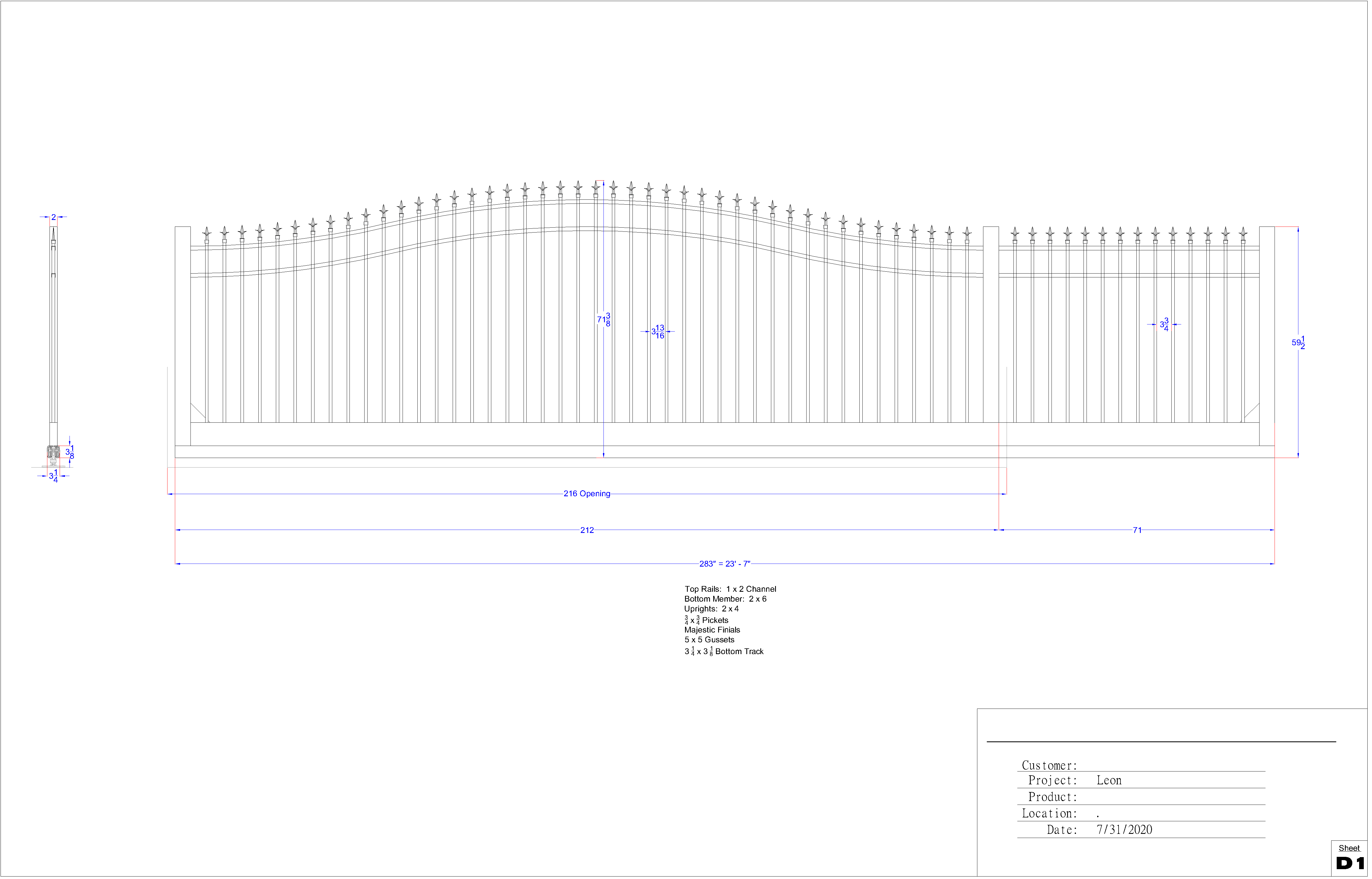

Given to client to get approval on the design. Worked from a very rough sketch,

Custom Guard Rails
Submittal Drawing

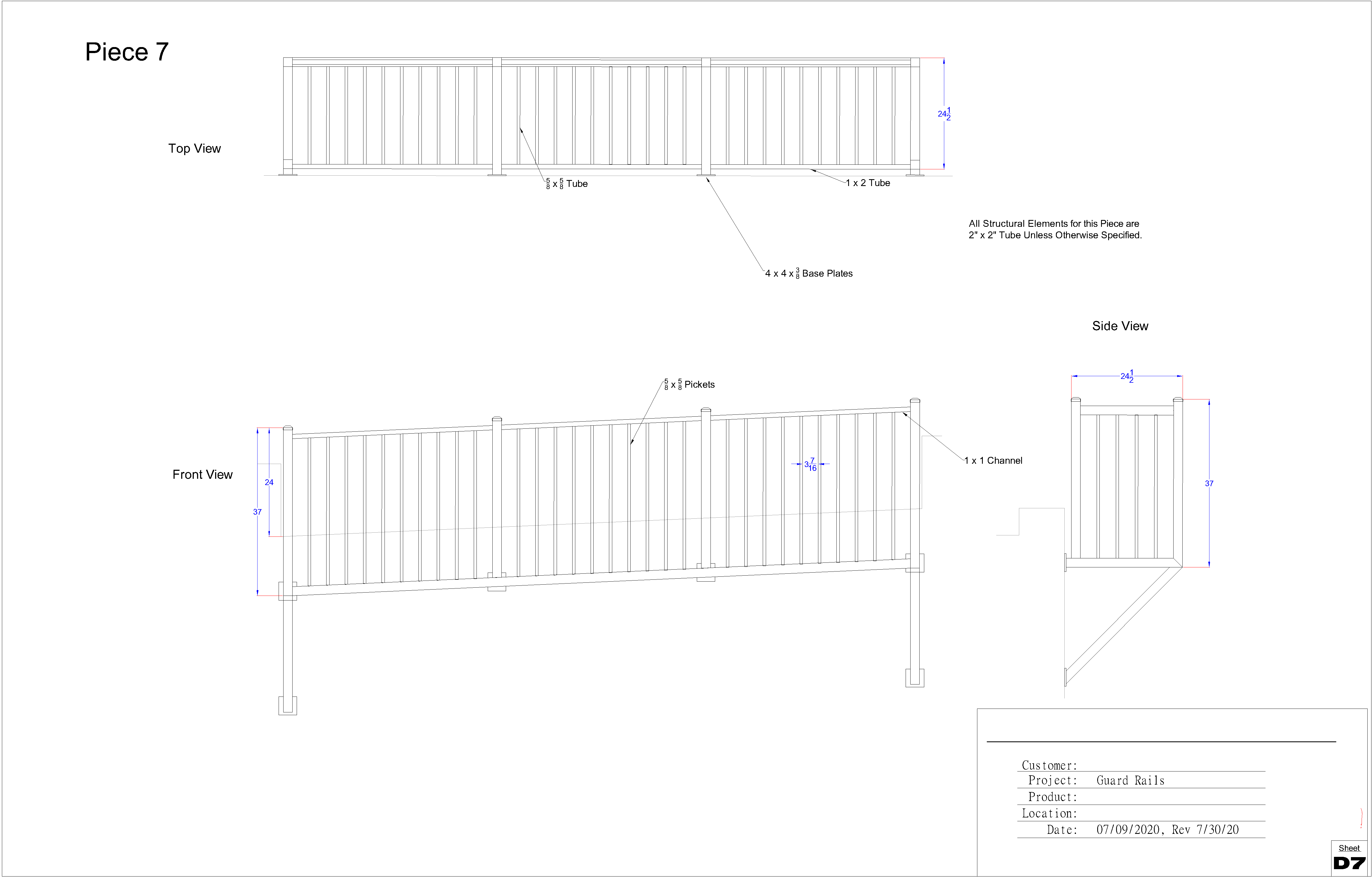

This one was designed completely from scratch. Onsite measurements were done and details verified with clients.

Custom Cable Rail Project
Fabrication Drawing

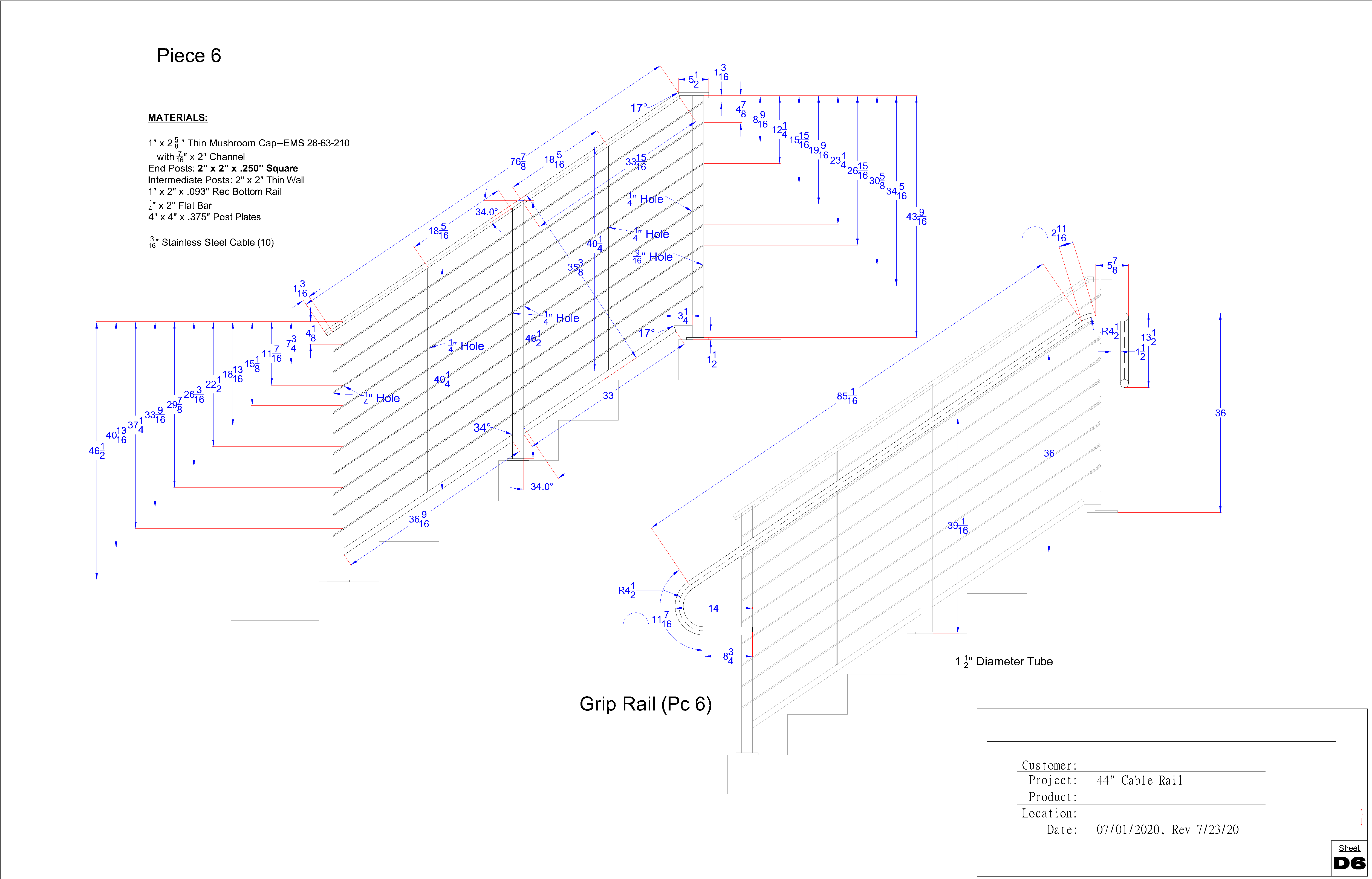

Another fabrication drawing for stair rails using cables.

Custom Balcony Rail
Fabrication Drawing

Custom Boardwalk Rails
Fabrication Drawing

These were designed for the City of Orlando and were drawn with the help of FabCad.
